3D Welding Table —— D28 Series

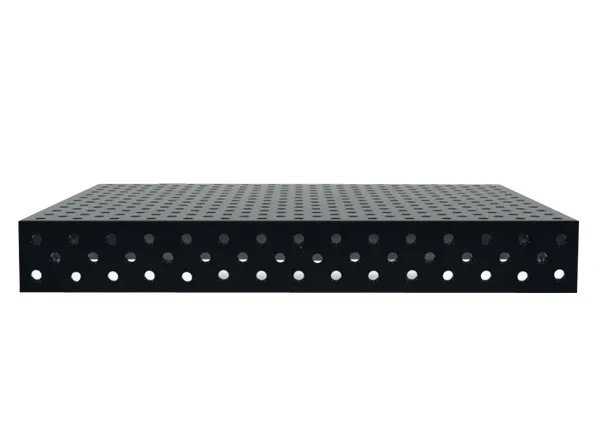

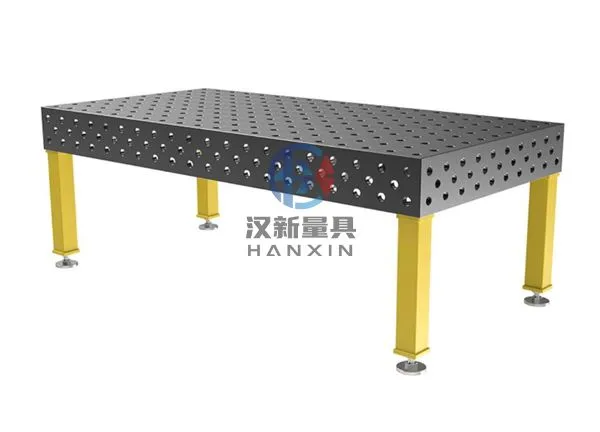

3D Welding Table D28 is designed for the manufacture of welded products; Made from high quality cast iron or steel, it has 5 precision machined working surfaces (1 top + 4 side surfaces). 3D welding table has good durability and performance, it offers you a flexible working surfaces for clamping, assembly and fabrication of workpieces with variable design to perform your welding operations.

Inquire Now Next Product

Specification:

Material: steel welding table: Q355

cast Iron welding table: HT 250 or HT300

Hardness: steel welding table: HV150-210

casting welding table: HB170-210

nitrated steel welding table: HV450-500

nitrated casting welding table: HV400-500

Precision machined working surfaces: 5 (1 top + 4 side surface), can be expandable by support tools.

Hole diameter: 28mm

Grid spacing: 100±0.05mm

Precision: table horizontal precision: 0.1/1000mm

table vertical precision: 0.1/200mm

drilling center accuracy: +/- 0.03mm

Hole pitch: 100mm

Perimeter ruler engraving: 1mm scale

Side surfaces height: 200mm

Be reinforced on the underneath side by ribs

Surface treatment: standard/ nitrided

Loading capacity: 2 tons weight loading capacity.

Supporting: legs or steel frame

Fixtures:

1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge

2.Spare parts for locating

3. Tools for clamping and fixing

4. Spare parts for locking working pieces

5. Auxiliary tools

3D Welding Table —— D28 Series

3D Welding Table (Cast Iron: HT250, HT300)

No.	Size *LW***H (mm)	Model	Weight (kg)
1	1000x1000x200	HF28D-1010C	350
2	1200x1200x200	HF28D-1212C	500
3	1500x1000x200	HF28D-1510C	520
4	1500x1500x200	HF28D-1515C	790
5	2000x1000x200	HF28D-2010C	700
6	2000x1500x200	HF28D-2015C	950
7	2400x1200x200	HF28D-2412C	900
8	3000x1500x200	HF28D-3015C	1550
9	3000x2000x200	HF28D-3020C	2100
10	4000x2000x200	HF28D-4020C	2800

Nitrided 3D Welding Table (Cast Iron: HT250, HT300)

No.	Size *LW***H (mm)	Model	Weight (kg)
1	1000x1000x200	HF28D-1010CN	350
2	1200x1200x200	HF28D-1212CN	500
3	1500x1000x200	HF28D-1510CN	520
4	1500x1500x200	HF28D-1515CN	790
5	2000x1000x200	HF28D-2010CN	700
6	2000x1500x200	HF28D-2015CN	950
7	2400x1200x200	HF28D-2412CN	900
8	3000x1500x200	HF28D-3015CN	1550
9	3000x2000x200	HF28D-3020CN	2100
10	4000x2000x200	HF28D-4020CN	2800

3D Welding Table (Steel: Q355)

No.	Size *LW***H (mm)	Model	Weight (kg)
1	1000x1000x200	HF28D-1010S	360
2	1200x1200x200	HF28D-1212S	500
3	1500x1000x200	HF28D-1510S	520
4	1500x1500x200	HF28D-1515S	700
5	2000x1000x200	HF28D-2010S	600
6	2000x1500x200	HF28D-2015S	950
7	2400x1200x200	HF28D-2412S	900
8	3000x1500x200	HF28D-3015S	1400
9	3000x2000x200	HF28D-3020S	1800
10	4000x2000x200	HF28D-4020S	2300

Nitrided 3D Welding Table (Steel: Q355)

No.	Size *LWH (mm)*	Model	Weight (kg)
1	1000x1000x200	HF28D-1010SN	360
2	1200x1200x200	HF28D-1212SN	500
3	1500x1000x200	HF28D-1510SN	520
4	1500x1500x200	HF28D-1515SN	700
5	2000x1000x200	HF28D-2010SN	600
6	2000x1500x200	HF28D-2015SN	950
7	2400x1200x200	HF28D-2412SN	900
8	3000x1500x200	HF28D-3015SN	1400
9	3000x2000x200	HF28D-3020SN	1800
10	4000x2000x200	HF28D-4020SN	2300

*Other sizes can be manufactured as per requirement.

Features of 3D Welding Table:

• Superior Quality: Made from high-quality raw material, 3D welding table offers exceptional sturdiness and stability, providing a reliable surface for precise welding.

• 3D Surface Design: The innovative 3D surface design ensures that the workpieces stay firmly in place, preventing any unwanted movement during welding.

• Versatile Fixturing Options: Equipped with wide fixturing options, 3D welding table allows you to secure various workpieces securely, accommodating complex welding projects easily.

• Heat and Spatter Resistant: The cast iron construction has excellent heat and spatter resistance, ensuring the welding table remains in pristine condition over prolonged use.

• Easy Cleanup: Due to its smooth surface, cleaning up after welding projects becomes very easy.
