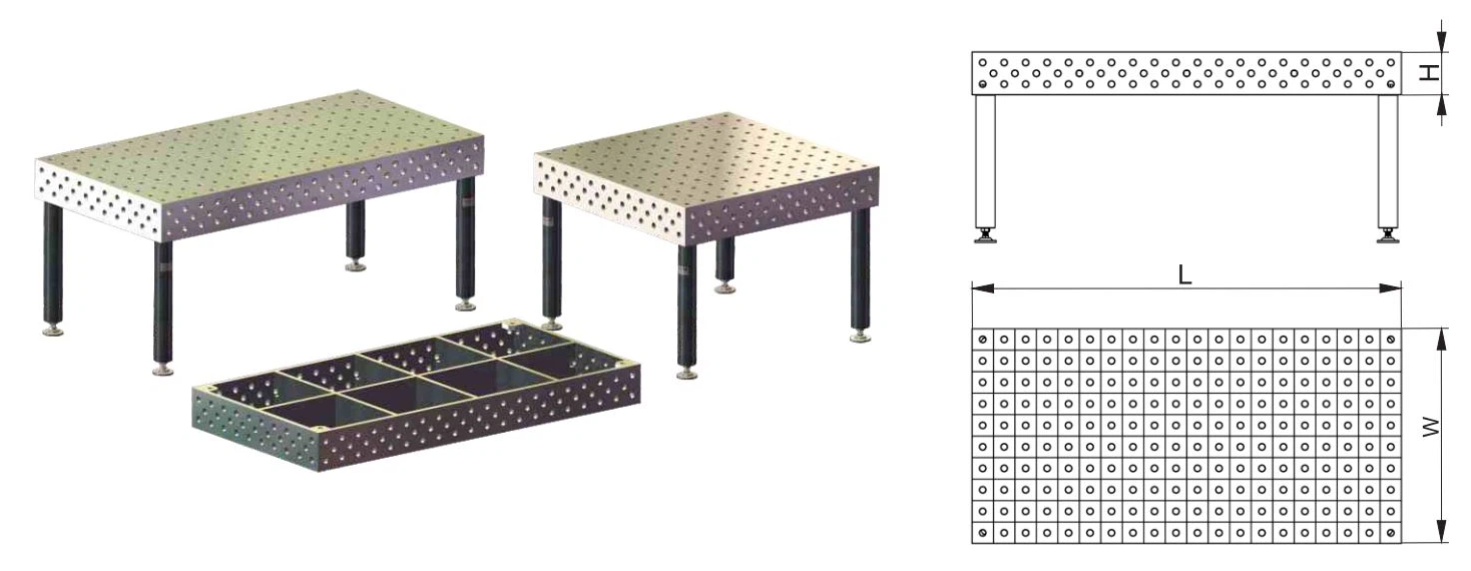

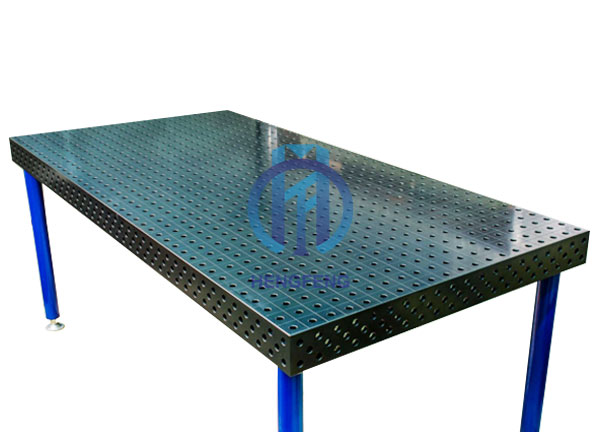

3D Welding Table is designed for the manufacture of welded products; Made from high quality raw material, it has 5 precision machined working surfaces (1 top + 4 side surfaces). 3D welding table has good durability and performance, it offers you a flexible working surfaces for clamping, assembly and fabrication of workpieces with variable design to perform your welding operations.

Inquire Now Next Product

Specification:

Material: steel welding table: Q355

cast Iron welding table: HT 250 or HT300

Hardness: steel welding table: HV150-210

casting welding table: HB170-210

nitrated steel welding table: HV450-500

nitrated casting welding table: HV400-500

Precision machined working surfaces: 5 (1 top + 4 side surface), can be expandable by support tools.

Hole diameter: 16mm and 28mm (drilled and milled hole.)

Grid spacing: D16 system: 50±0.05mm; D28 system: 100±0.05mm

Precision: table horizontal precision: ±0.1/1000mm

table vertical precision: ±0.1/200mm

drilling center accuracy: ±0.03mm

Hole pitch: 50±0.05mm; D28 system: 100±0.05mm

Perimeter ruler engraving: 1mm scale

Side surfaces height: D16 system: 100mm or 200mm; D28 system: 200mm

Be reinforced on the underneath side by ribs

Surface treatment: standard/ nitrided

Loading capacity: 2 tons weight loading capacity.

Supporting: legs or steel frame

Fixtures:

1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge

2.Spare parts for locating

3. Tools for clamping and fixing

4. Spare parts for locking working pieces

5. Auxiliary tools

3D Welding Table —— D28 Series

3D Welding Table (cast iron: HT 250, HT300)

No.	Size L x W x H (mm)	Model	Weight (Kg)
1	1000x1000x200	HF28D-1010C	350
2	1200x1200x200	HF28D-1212C	500
3	1500x1000x200	HF28D-1510C	520
4	1500x1500 x 200	HF28D-1515C	790
5	2000x1000x200	HF28D-2010C	700
6	2000x1500x200	HF28D-2015C	950
7	2400x1200x200	HF28D-2412C	900
8	3000x1500x200	HF28D-3015C	1550
9	3000x2000x200	HF28D-3020C	2100
10	4000x2000x200	HF28D-4020C	2800

3D Welding Table —— D16 Series

3D Welding Table (cast iron: HT 250, HT300)

No.	*SizeLWH(mm)*	Model	Unit Weight(kg)
1	1000x500x100	HF16D-1005C	80
2	1000x1000x100	HF16D-1010C	150
3	1200x800x100	HF16D-1208C	145
4	1200x1200x100	HF16D-1212C	220
5	1500x1000x100	HF16D-1510C	230
6	1500x1500x100	HF16D-1515C	340
7	2000x1000x100	HF16D-2010C	300
8	2400x1200 x 100	HF16D-2412C	400
9	1000x500x200	HF16D-1005-2C	90
10	1000x1000x200	HF16D-1010-2C	165
11	1200x800x200	HF16D-1208-2C	160
12	1200x1200x200	HF16D-1212-2C	240
13	1500x1000x200	HF16D-1510-2C	250
14	1500x1500x200	HF16D-1515-2C	370
15	2000x1000x200	HF16D-2010-2C	330
16	2400x1200x200	HF16D-2412-2C	440

*Other sizes can be manufactured as per requirement.

Features of Cast Iron Welding Table:

• Superior Quality: Made from high-quality raw material, 3D welding table offers exceptional sturdiness and stability, providing a reliable surface for precise welding.

• 3D Surface Design: The innovative 3D surface design ensures that the workpieces stay firmly in place, preventing any unwanted movement during welding.

• Versatile Fixturing Options: Equipped with wide fixturing options, 3D welding table allows you to secure various workpieces securely, accommodating complex welding projects easily.

• Heat and Spatter Resistant: The cast iron construction has excellent heat and spatter resistance, ensuring the welding table remains in pristine condition over prolonged use.

• Easy Cleanup: Due to its smooth surface, cleaning up after welding projects becomes very easy, saving you valuable time and effort.
