Angle Plate Cast Iron

Next Product Inquire Now

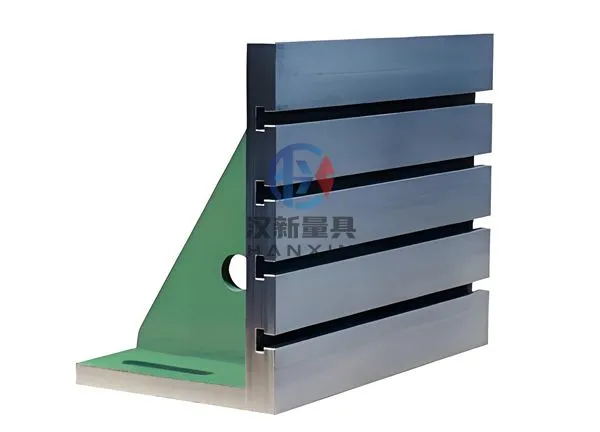

Angle Plates Cast Iron are widely used for clamping and holding workpieces in vertical position for layout, tooling and machining. They are used for the vertical positioning and mounting of workpieces and fixtures. All machined faces are square and parallel. Angle plates in different sizes make ideal fixtures for milling, drilling and boring operations on machine tools.

OEM or ODM service: we offer a wide range of services from standard Cast Iron Angle Plates to custom order as per request.

Calibration Certificate: EX-works inspection reports offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request at extra cost.

Delivery Costs: calculated during the checkout process.

Key Features:

• Made from high quality Cast Iron.

• Heat-treated for stress relief.

• High strength, High precision, High hardness.

• Finer accuracies can also be achieved on request at extra cost.

• Slots arranged for maximum clamping versatility.

• Customized and specifically designed as customers’ requirement.

These features make HENGFENG one of the best Cast Iron Angle Plates manufacturers in the industry.

Inquire Now Next Product

Specification:

Product Details:

Material: HT200-300

Specification: standard or customize

Working Surface: flat, T-slots, slotted holes, custom hole sizes, etc.

Hardness of the working surface: HB160-240

Surface treatment: hand scraped, ground finish or machined finish

Surface coating: working surface covered with antirust oil and unmachined areas covered with antirust paint.

Precision grade: 1-3

Type: webbed end or open end

Packaging: anti-rust packing+ plywood box

Warranty: 1 year

Cast Iron Angle Bending Plate

Standard Size of Cast Iron Angle Plates

Specification（mm）	Squareness Between Adjacent Measuring Surfaces			Flatness and Parallelism of Measuring Surface			Flatness and Parallelism of Datum Surface
	Precision Grade (μm)
	GR “1”	GR “2”	GR “3”	GR “1”	GR “2”	GR “3”	GR “1”	GR “2”	GR “3”
200 × 200	8	16	30	4	8	16	6	12	24
300 × 200	10	20	40	5	10	20	8	16	30
300 × 300	10	20	40	5	10	20	8	16	30
400 × 300	12	24	45	6	12	24	10	20	40
400 × 400	12	24	45	6	12	24	10	20	40
500 × 400		28	50		14	28		24	48
500 × 500		28	50		14	28		24	48
800 × 600		35	60		18	35		28	55

*Custom - Designed specifically for your application. Some options include T-slots, custom hole sizes, custom patterns. Contact us for more information.
