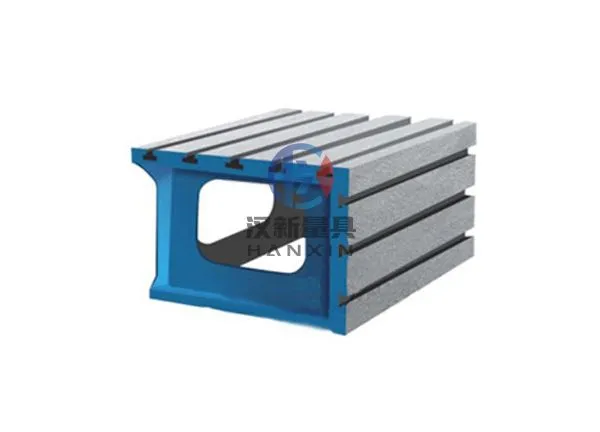

High Precision Cast Iron Box Angle Plate with T-Slot

Next Product Inquire Now

High Precision Cast Iron Box Angle Plates with T-Slot are made of high tensile cast iron properly seasoned against distortion, are used as a versatile tool for layout machine set – ups, tooling and inspection of large jobs. They can also be used as right angles and squares. They are made and used either in single or in combination for comprehensive applications. The T-slots on vertical face and top face provided along and / or across the length, as per required. The vertical working surface is machined finish. The flatness and perpendicularity between table face and top face with vertical working surface as per request. They meet or exceed the requirements set forth by various National and International Standards.

OEM or ODM service: we offer a wide range of services from standard Cast Iron Square Boxes/Blocks to customized and specifically designed as per loading requirement.

Calibration Certificate: EX-works inspection reports offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request for an additional charge.

Delivery Costs: calculated during the checkout process.

Inquire Now Next Product

Specification:

Material: HT200-300

Specification: customize

Surface: flat / tapped holes / T-slots / cored elongated slots

Hardness of the working surface: HB160-240

Surface treatment: hand-scraped or finish-milling

Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint

Heat-treated: available for stress relief, stability and wear resistance

Precision grade: 2-3

Packaging: anti-rust packing+ plywood box
