Cast Iron Locator-grid Cube

Next Product Inquire Now

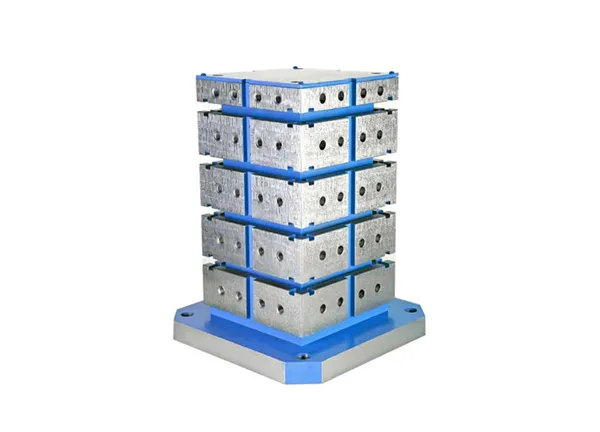

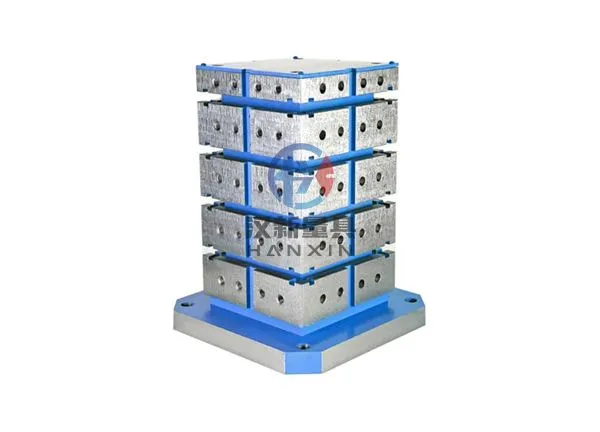

Each face of Cast Iron Locator-grid Cube is equal width. It looks like a square from the top view, which is perhaps one of the most common work-holding fixture shapes. It can be used for a wide variety of applications because each of the four faces can either hold the same or a different operation set-up.

Inquire Now Next Product

Specification:

Grid spacing 40, Ø12 / M 12

No.	A	B	C	D	E	F	G	T	Spacing	No. of holes	Fixing holes
1	500	400	250	320	200	55	50	Ø12/ M12	40	180	4
2	600	500	300	400	250	75	50	Ø12/ M12	40	264	8
3	700	630	350	500	315	100	50	Ø12/ M12	40	392	8
4	800	800	500	640	400	135	50	Ø12/ M12	40	704	8

Grid spacing 50, Ø12 / M 12

No.	A	B	C	D	E	F	G	T	Spacing	No. of holes	Fixing holes
1	500	300	150	250	150	40	50	Ø12/ M12	50	64	4
2	500	400	250	320	200	55	50	Ø12/ M12	50	128	4
3	650	400	250	320	200	55	50	Ø12/ M12	50	176	4
4	600	500	300	400	250	75	50	Ø12/ M12	50	200	8
5	600	500	300	400	250	75	50	Ø12/ M12	50	260	8
6	700	630	350	500	315	100	50	Ø12/ M12	50	288	8
7	850	630	350	500	315	100	50	Ø12/ M12	50	360	8
8	800	800	500	640	400	135	50	Ø12/ M12	50	504	8
9	1000	800	500	640	400	135	50	Ø12/ M12	50	648	8

Grid spacing 50, Ø16 / M 16

No.	A	B	C	D	E	F	G	T	Spacing	No. of holes	Fixing holes
1	500	300	150	250	150	40	50	Ø16/ M16	50	64	4
2	500	400	250	320	200	55	50	Ø16/ M16	50	128	4
3	650	400	250	320	200	55	50	Ø16/ M16	50	176	4
4	600	500	300	400	250	75	50	Ø16/ M16	50	200	8
5	750	500	300	400	250	75	50	Ø16/ M16	50	260	8
6	700	630	350	500	315	100	50	Ø16/ M16	50	288	8
7	850	630	350	500	315	100	50	Ø16/ M16	50	360	8
8	800	800	500	640	400	135	50	Ø16/ M16	50	504	8
9	1000	800	500	640	400	135	50	Ø16/ M16	50	648	8

*Other sizes & combinations can be manufactured as per requirement.
