Cast Iron Clamping Rails

Next Product Inquire Now

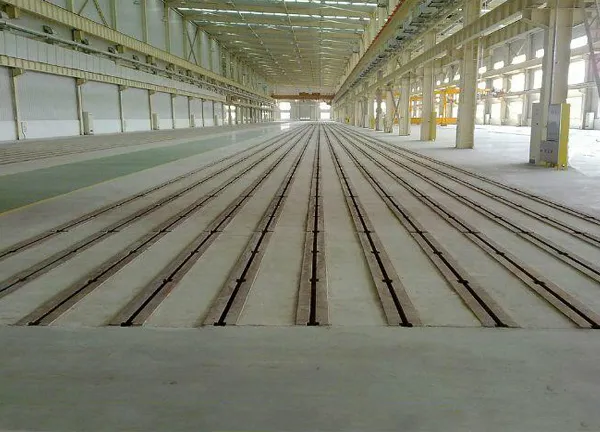

Cast Iron Floor Clamping Rails or Fitter Bars or Floor Skids as commonly known, are placed in line and rows to the required pitch, provide economical solutions for large planes with T-slotted Floor area for assembly, fabrication and testing of large components / machines etc. They are permanently grouted in concrete floors. Clamping rails are available with single or double slots.

OEM or ODM service: we offer a wide range of services from standard surface plates to custom order as per request.

Calibration Certificate: EX-works inspection reports offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request for an additional charge.

Delivery Costs: calculated during the checkout process.

Inquire Now Next Product

Specification:

Key Features:

• Manufactured from high quality cast iron.

• Castings stress relieved as a precaution against distortion.

• Top working surface planed / milled machine finish.

• Flatness accuracies for individual rail are offered within 0.05 mm per meter length.

• Rails with multiple T-slots & customer specific requirements, can also be offered upon request from buyer.

• For mounting on a concrete foundation using an anchoring construction or stone bolts

These features make HENGFENG one of the best Cast Iron Floor Clamping Rails manufacturers in the industry.

Material: HT200-300 or customized

Specification: 2000-5000mm or customized

Working Surface: single T-slot or double T-slots

Heat-treated: available for stress relief, stability and wear resistance

Accessories: supplied with suitable arrangement for leveling and anchoring on the floor.

Packaging: anti-rust packing+ plywood box

Warranty: 1 year

Standard Sizes of Clamping Rails / Floor Skids:

Length (in mm)	Width (in mm)	Height (in mm)	No. ofLeveling & Anchoring pads	No. of T-Nut Entry Pockets
2000	200	110	3	2
3000	200	110	4	3
4000	200	110	5	4
5000	200	110	6	5

* Other sizes on request
