Anti Vibration Granite Surface Plate with Cupboard Type Stand

Next Product Inquire Now

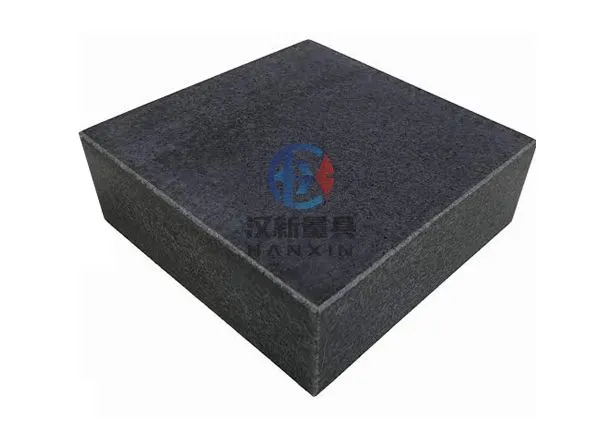

    Anti Vibration Granite Surface Plate with Cupboard Type Stand are best known due to their rust-less properties. They are made of high-quality Jinan black granite. Due to their high precision, long duration, good stability and corrosion resistance, they have been more and more used in precision gauging, inspection, layout and marking purposes and preferred by Research Laboratories, Engineering Industries, Factory Workshops, Precision Tool Rooms, etc. Fabricated frame / cupboard type / cast iron column type stand with leveling screws are available on request at extra cost.


    The adjustable surface plate stands are manufactured from heavy duty angle and reinforced for rigidity. They are designed to support the plates and have levelling screws to allow the plates to set accurately.



    OEM or ODM Service: we offer a wide range of services from standard surface plates to custom order as per request.

    Calibration Certificate: EX-works inspection reports with measurement values offered by our Quality Inspection Department are included with every surface plate, “Calibration Certificate” is available upon request for an additional charge.

    Delivery Costs: calculated during the checkout process

Specification:

Material: black granite

Specification: 200X200mm up to 3000X5000mm or customized

Surface: flat, tapped holes, T-slots, metallic T-slots, metallic threaded inserts, etc.

Hardness of Working Surface: HS70

Surface Treatment: ground finish

Stands with Leveling Screws: available on request at extra cost

Precision Grade: 0, 1

Ledge Types: 0, 2 or 4

Packaging: plywood box

Warranty: 1 year


Key Features:

• Almost no aging

• High wear resistance, high accuracy and it can maintain for longer life

• Moisture and corrosion free, no rusting, no oiling, will not stain or discolor

• Low maintenance costs

• Good vibration isolation and attenuation performance

These features make HENGFENG one of the best Granite Surface Plates manufacturers in the industry.


Standard Sizes of Granite Surface Plate

No.Width X Lengthmm)Precision Grade
GR “0”GR “1”
Flatness
  (μm)
1200X2003.5
2300X2004
3300X3004
4300X4004
5400X4004.5
6400X5004.5
7400X6005
8500X5005
9500X6005
10500X8005.5
11600X8005.5
12600X9006
131000X7506
141000X10007
151000X12007
161000X15008
171000X20009
181500X200010
191500X250011
201500X300013
212000X200011
222000X30001327
232000X40001632
242000X50001937
252000X60002243
262000X70002549
272000X800027.554.5
282500X300014.528.5
292500X400016.533
302500X500019.539
312500X60002244
323000X300015.530.5
333000X400017.535
343000X50002040

*Other sizes are also available upon request. Lead time varies depending upon size and finish requirement.
